ProductsIntensive Green Sand Mixer for Foundry Casting

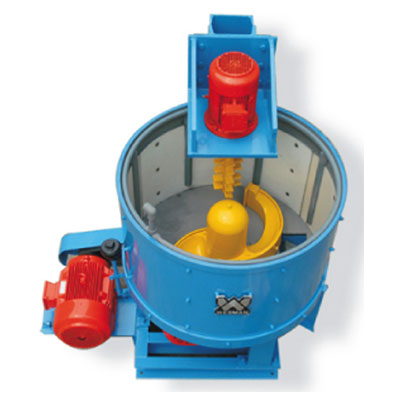

Intensive Green Sand Mixer

WESMAN P-SERIES INTENSIVE MIXERS have the following design features to efficiently deliver large volumes of high-quality prepared sand:

DRIVE UNIT intelligently mounted on top gives easy access for maintenance and less down-time

PLANETARY GEARBOX rotates blades at high speed on their own axis and revolves them in pan for thorough mix

FLUID COUPLING located between motor and gearbox to protect motor from shock load burnout

TRIPLE-ACTION ROTORS each have three arms with replaceable blades for homogenous output of sand

INTEGRAL HOPPER built into mixer cover feeds sand and additives into the mixer smoothly and conveniently

CENTRAL SPRAYER allows water to be added through central axis via spray heads mounted on rotor arms

SIDE WALL SCRAPERS of tungsten carbide continuously clean side walls and push sand towards mixing rotors

PNEUMATIC DOOR for bottom discharge with heavy-duty cylinder allows rapid discharge of sand in 12 seconds

RUGGED DESIGN with wear-resistant base plate mounted on heavy steel sections for long life

PLC CONTROL PANEL operates mixer on full auto cycle and also controls sand, additive and water addition
MODEL P-250 P-500 P-1000

A

1720

2400

2950

B

1000

1350

1700

C

780

1000

1240

D

1100

1400

1750

E

1105

1460

1790

F

1730

2250

2840

G

1250

1800

2200

H

820

1230

1450

J

1360

1620

2050

K

650

900

1050

L

1000

1420

1800

MODEL P-250 P-500 P-1000

BATCH

CAPACITY

250 KG

500 KG

1000 KG

HOURLY

CAPACITY

10 TPH

20 TPH

40 TPH

DRIVE

MOTOR

20 HP

40 HP

75 HP
